Cashco model 1164

Cashco model 1164

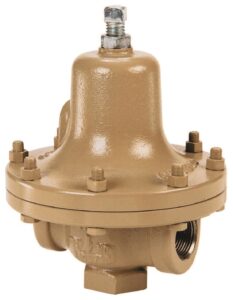

1164  BACK PRESSURE RELIEVING REGULATOR

The Model 1164 is a relief regulator suitable as a back pressure or bypass regulator for controlling inlet pressure between 0.34-10.3 Barg (5 and 150 psig). Applications Designed for controlling a wide range of fluids including air, inert gases, chemicals, water, fuel oil and steam.

Features

  • High Capacity, A large orifice and diaphragm provide sensitivity with high capacity.
  • Versatile, Three body materials and six trim material combinations allow compatibility with many fluids.
  • Tight Shut Off, A TFE composition seat is available.
  • Sensitivity,  A large diaphragm area plus no guiding friction assures positive reaction to the slightest change in pressure.

BestandActie
1164 TBDownloaden
